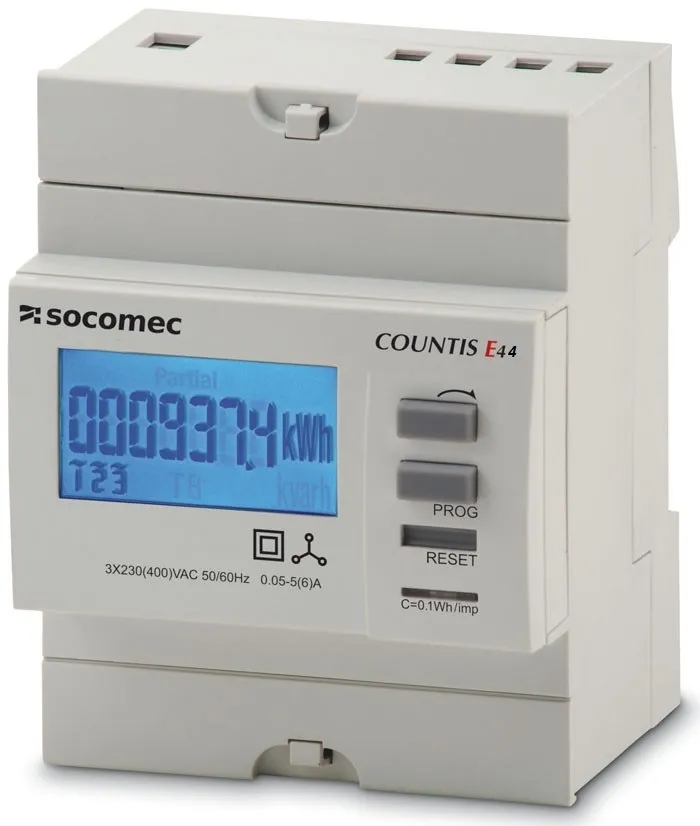

Socomec COUNTIS E44 3 Phase Dual Tariff MID Energy Meter 5A CT Connected with Modbus RS485 (4850-3066)

Manufacturer Part No: 48503014

Socomec COUNTIS E44 3 Phase Dual Tariff MID Energy Meter 5A CT Connected with Modbus RS485 (4850-3066)

Manufacturer Part No: 48503014

£189.60

£227.52 inc. VAT

Product Description

Socomec's COUNTIS E44 is a modular active and reactive electrical energy meter displaying the energies and active power consumed (kWh, kVArh and kW) directly on its back-lit LCD display. It is designed for three-phase load metering with connection via CT and is suitable for applications of up to 3000A.

Product Features:

  • Measurement accuracy: 1%
  • MID Certified
  • Pulse Output
  • Modbus RS485
  • Dual-Tariff options

Specification

Case

Type

modular

Number of modules

4

Dimensions (W x H x D)

72 x 90 x 64 mm

Case degree of protection

IP20

Front degree of protection

IP51

Display type

8-digit backlit LCD

Rigid cable cross-section

1.5 to 6mm²

Flexible cable cross-section

1.5 to 6mm²

Weight

322g

Current Measurement

Type

three-phase on CT1 and 5A up to 12000 A

Input consumption

0.5 VA max. per phase

Startup current (Ist)

1 mA - Class C
2 mA - Class 1

Minimum current (Imin)

10 mA

Transition current (Itr)

50 mA

Reference current (Iref)

1 A

Permanent overload (Imax)

6 A

Intermittent overload

120 A for 0.5 s

Voltage Measurement

Range of measurement

230 ... 400V +/- 20 %

Consumption (VA)

7.5 VA max (0,5 W) per phase E41/E42/E45/E46
3.5 VA max (1 W) per phase E43/E44/E47/E48

Permanent overload

290 V phase-neutral / 500 V phase-phase

Energy Accuracy

Active (according to IEC 62053-21)

Class 1

Active (according to EN 50470)

Class B

Reactive (according to IEC 62053-22)

Class 2

Power Supply

Self-supplied

Yes

Frequency

50 / 60 Hz

Output (pulse)

Number

2 (E41/E42)
1 (E43 ... E48)

Type of Octocoupler

250 VAC/DC - 100 mA (E41/E42)
27 VDC - 27 mA (E43 ... E48)

Pulse weight

1 Wh ➱ CT = 1 ... 4
5 Wh ➱ CT = 5 ... 24
25 Wh ➱ CT = 25 ... 124
125 Wh ➱ CT = 125 ... 624
1000 Wh ➱ CT = 625 ... 3124
10000 Wh ➱ CT = 3125 ... 12000

Pulse duration

50 ± 2 ms ON time
30 ± 2 ms OFF time

Operating temperature

Operating temperature

-25 to 55 °C

Storage temperature

-25 to 75 °C

Relative temperature

80%

Communication

Communication

E43/E44

E45/E46

E47/E48

Link

RS485WiredRJ45

Type

2 to 3 half duplex2 half duplexFull Duplex

Protocol

MODBUS RTUM-BUSMODBUS TCP, HTTP, NTP, DHCP

Baudrate

1200 … 115200 bauds300 … 9600 bauds10/100 Mbps
