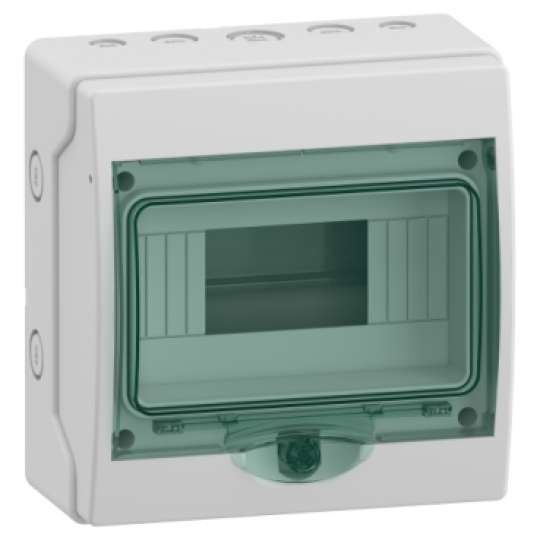

Schneider Electric 13443 Mini Kaedra For Modular Device - 1 Openings - 8 Modules - 4 Terminal Blocks

Name: Schneider Electric 13443 Mini Kaedra For Modular Device - 1 Openings - 8 Modules - 4 Terminal Blocks
Brand: Schneider Electric
Price: 62.4 GBP
Availability: BackOrder

Schneider Electric

Schneider Electric 13443 Mini Kaedra For Modular Device - 1 Openings - 8 Modules - 4 Terminal Blocks

Schneider Electric

£52.00

£62.40 inc. VAT

Specification
Downloads
Ask a Question
Help & Advice

Specification

Main

Mounting plate description	Without mounting place
Enclosure mounting	Surface
9 mm pitches	16
Number of 18 mm modules per row	8
Total number of 18 mm modules	8
Number of horizontal rows	1
Electrical insulation class	Double insulation Class II
Provided equipment	1 marking kit 4 terminal block 4 holes
Type of front cover	Transparent
Power dissipation in W	15 W
[In] rated current	63 A
Type of rail	DIN
Number of pre-cutouts PG ISO	5
Number of terminal blocks	4 earth / neutral (screw connection) with 4 outgoers
Distribution block outgoers	8 x 10 mm² 8 x 16 mm²
Locking options description	Optional keylock
Enclosure material	Self-extinguishing polymer
W x H x D (mm)	195 x 200 x 112
Internal depth (mm)	56
Colour	Door: transparent green Enclosure: light grey (RAL 7035)

Environmental

Standards	IEC 60670-1 IEC 60670-24 EN 50262 IEC 60695-2-1
Fire resistance	650 °C conforming to IEC 60695-2-1
IP degree of protection	IP65 conforming to IEC 60529
IK degree of protection	IK09 conforming to EN 50102
Environmental characteristics (UV)	UV resistant: class 3 conforming to ISO 4582:2010 Ultraviolet degradation test conforming to ISO 4892-2:2013
Overvoltage category	II
Ambient air temperature for operation	-25…60 °C
