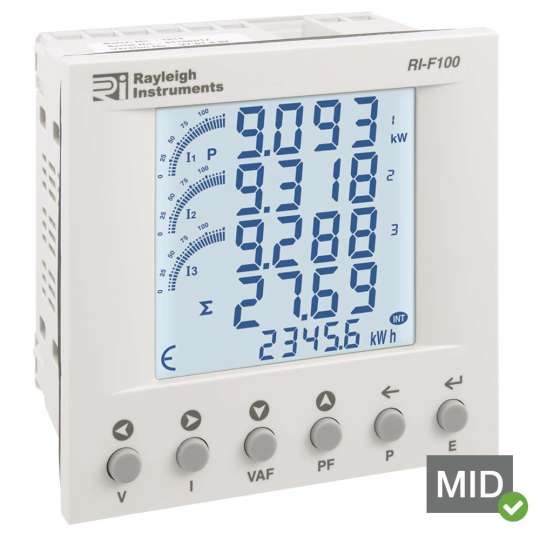

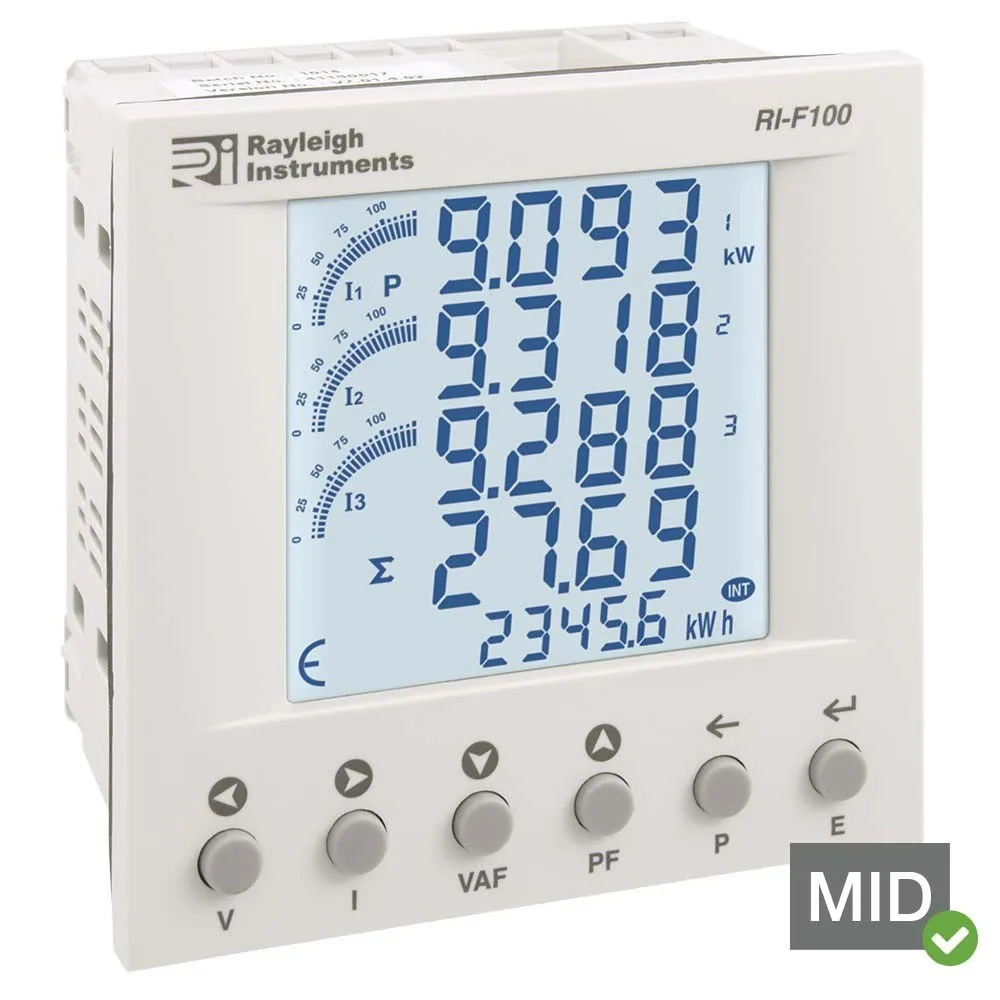

Ri f100 mid certified energy meter

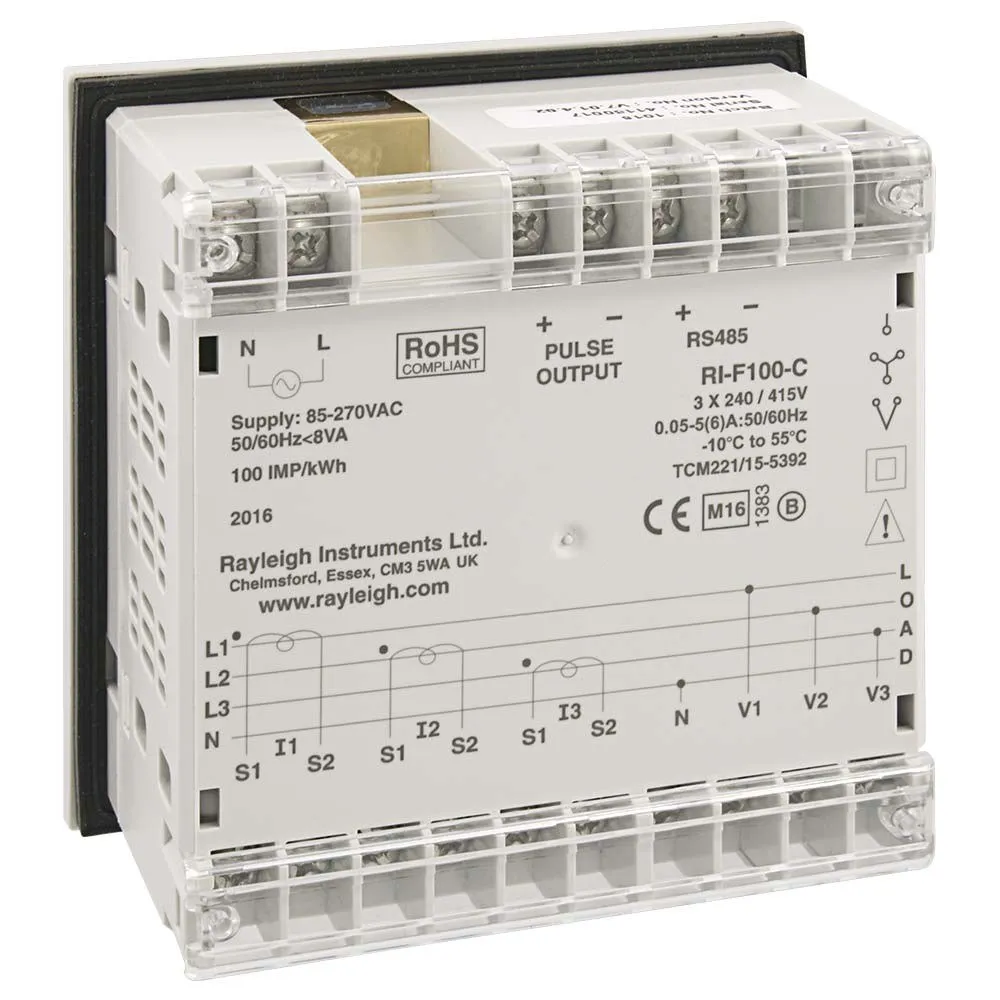

Ri f100 mid certified energy meter back

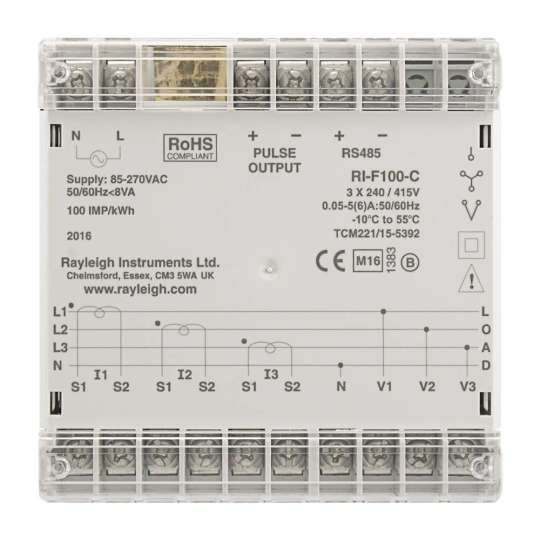

Ri f100 mid certified energy meter back square

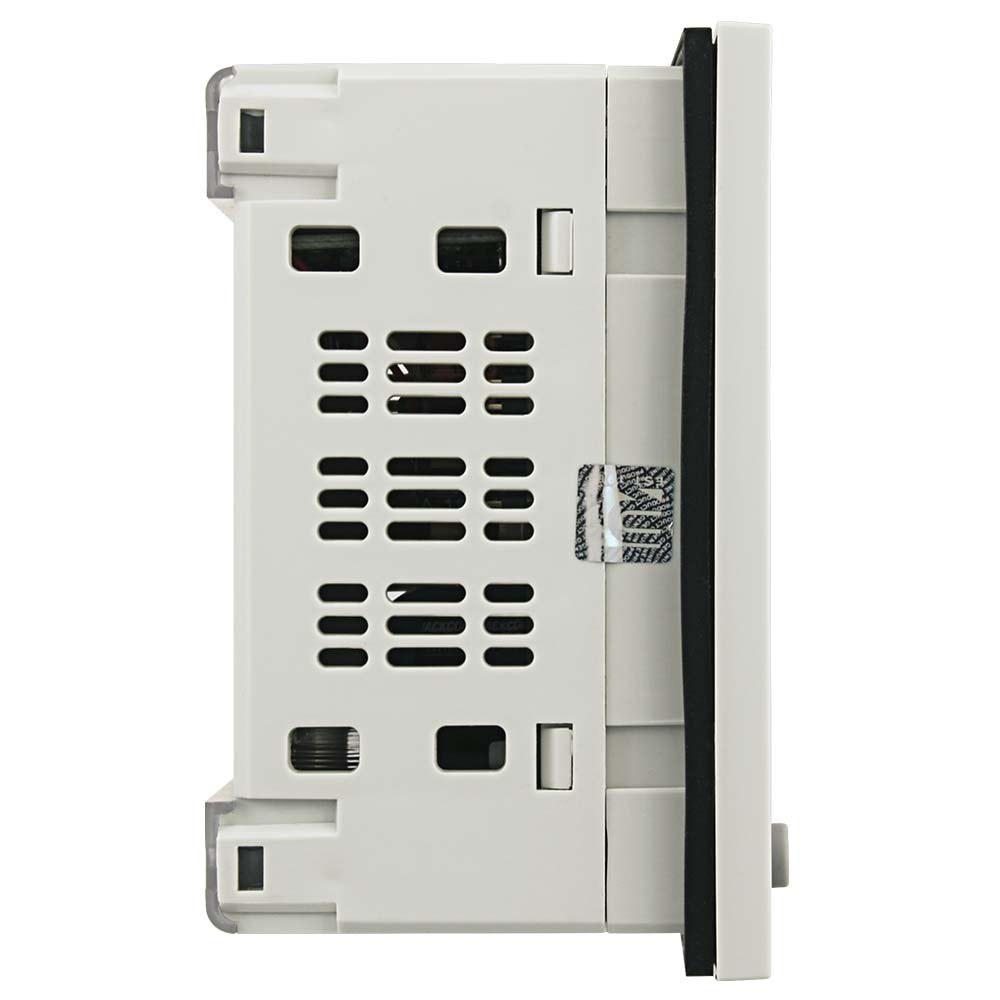

Ri f100 mid certified energy meter to right
Rayleigh Instruments RI-F100 Three-Phase Panel Mount Multifunction MID Energy Meter
£120.00
£144.00 inc. VAT
Product Description
The RI-F100 is an ideal 96mm panel meter for most applications and comes with Modbus and MID certificaiton.
Applications include residential,commerical,industrail and renewable markets.
Product Features
- DIN 96 panel mounted
- -/1A or -/5A current transformer input (MID certification only on 5A)
- Three phase network compatible
- Programmable voltage and current transformer ratio
- True RMS measurement
- MID B+D Certified (Cert. No. : TCM 221/16-5392)
- High definition white backlit LCD display
- Compact size - only 50mm panel depth
- Simple programming and operation
- Pulse output and RS485 Modbus communication
- Auto and manual page scrolling
Specification
Displayed Parameters
- Voltage – L-L, L-N and average
- Current – Phase, total and Max. demand
- Power Factor – per phase and average
- Total Harmonic Distortion – Current and Voltage
- Neutral current (calculated)
- Frequency
- Hours Run – Hours & minutes
- Power – Active, Reactive and Apparent (per phase and total)
- Power Min./Max. demand – Active, reactive and apparent.
- Energy – Active, reactive and apparent (per phase and total)
- Import and export energy – Active, Reactive and Apparent (per phase and total)
