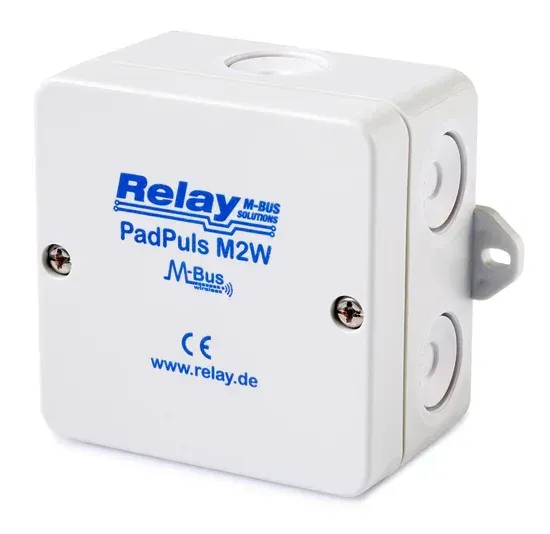

PadPuls M2W - Relay Pulse to Wireless M-Bus Converter

Name: PadPuls M2W - Relay Pulse to Wireless M-Bus Converter
Brand: Meter Market Brand
Price: 108 GBP
Availability: InStock

£90.00

£108.00 inc. VAT

Product Description

The PadPuls M2W is a 2-channel pulse to Wireless M-Bus adaptor. The battery driven PadPuls M2W sends the data according to the OMS standard.

General

Wireless M-Bus according to standard EN13757-4 Mode S, T and C (Frame Format A)

OMS compatible

Frequency range 868 MHz

Optional encryption mode 5 or 7, AES

Synchronous transmission

Configurable transmission interval between 10 seconds and 15 minutes

Configuration with free software via USB-TTL cable (Art. KV003)

Battery operation with a service life> 10 years at a transmission interval of 15 minutes

Internal antenna

Pulse inputs

For potential-free impulses such as reed contacts, optocouplers, relays ..

Contact scanning: voltage 2.5V to 3.6V, current 30μA, max. 18Hz frequency

debouncing the signals up to max. 5ms

Housing

Distribution box for wall mounting with self-sealing cable glands

Dimensions W x L x H = (80 x 80 x 52) mm

Protection class IP65 is possible
