Emlite ECA2 MID Single Phase 100A Direct Connected Meter
£40.00
£48.00 inc. VAT
£39.00
£46.80 inc. VAT

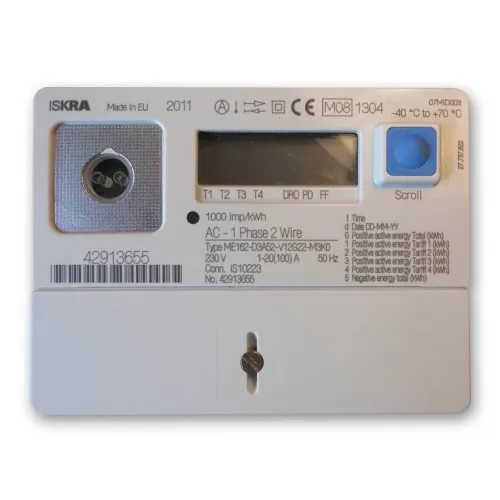

Iskraemeco's ME162 is a 100A Single-Phase MID meter with a Pulsed output. It has Economy 7 Tariff capabilities (Day & Night) and an internal time-switch (Real-time Clock) allowing for flexible billing schedules. It is suited for residential and small commercial users, and for revenue measuring of active power in two wire systems.
Accuracy class | 2 or 1 |
Rated current In | 5, 10, 20 A |
Max. current Imax | 85, 100 A |
Min. current | 0,05 In |
Starting current | 0,004 Ib |
Reference voltage Un | 120, 220, 230, 240 V |
Voltage range | 0,8 Un ... 1,15 Un |
Reference frequency | 50, 60 Hz |
Meter constant | 1000 imp/kWh |
Clock accuracy (25°C) | .≤ 6 ppm or ≤ ± 3 min/year |
RTC control | 32 kHz crystal |
Temperature range of operation | -25°C ... +60°C |
Extended temp. range | .-40°C ... +70°C |
Storing temperature | .-40°C ... +85°C |
Current circuit burden | <25 mW / 25 mVA |
Voltage circuit burden | <0.8 W / 10 VA |
Dielectric strength (burst test) | 4 kV, 50 Hz, 1 min |
Impulse voltage | 6 kV, 1,2/50 µs |
Short-circuit current | 30 Imax |
EMC: High frequency disturbances | 6 kV (IEC 1000-4-4) |
Optical port | IEC62056-21 (IEC 61107) |
Impulse outputs | S0 . . . . . . . . . . . . . . . . . . . . .ti = 40 ms (10 , 20, 30, ..., 160 ms) opto-MOS . . . . . . . . . . . . . . .ti = 80 ms (10 , 20, 30, ..., 160 ms) Switching power . . . . . . . . . .25 VA (100 mA, 250 V) |
Dimensions (W x H x D) | 130 x 97 x 43 mm |
Mass | Approx. 0.380 kg |
