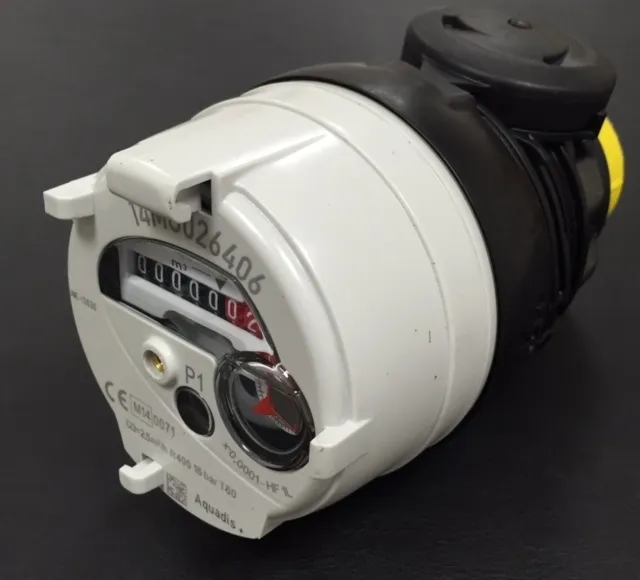

Itron Aquadis+ composite body manifold with 2.5 Q/N MP 16 and Pulsed output (AQP15MCTVMQBR315)

£68.00

£81.60 inc VAT

Overview

Aquadis+ Manifold is a compact piston type volumetric water meter that was designed specifically for residential metering applications.

The meter is approved class C + D In any position and has a copper alloy body. The meter is compliant to BS 5728 for cold portable water meters and EN 14154:2005.

These meters can be fitted in any position and all have BSP threads , maximum working pressure 16 bar and maximum working temperature 50°C.

Key features

  • MID - Directive 2004/22/EC of the European Parliament
  • Radio walk-by systems

Extra options (If selected)

  • M-Bus wired systems (walk-by or fixed network)
  • Pulse output

Specification

Technical Specification

  • MID Metrology Class (R) all positions: 50min/400max
  • MID Type Approval Number: LNE 13636
  • Nominal flow rate (Q3):  1.6 - 2.5 m3/h
  • Standard Ratio (Q3/Q1): 100 - 160
  • Minimum Flow Rate (Q1):  16 - 15.6 l/h
  • Transitional Flow Rate (Q2): l/h 25.6 - 25
  • Overload Flow Rate (Q4):  2 - 3.12 m3/h
  • Typical Starting Flow Rate: < 1 l/h
  • Accuracy ± 5%: 4 l/h
  • Accuracy ± 2%: 8 l/h
  • Pressure Loss Class at Q3: 0.25 - 0.63 bar
  • Maximum Admissible Pressure (MAP): 16 bar
  • Testing pressure: 25 bar
  • Maximum Operating Temperature (MAT) - °C 50 **
  • Climatic Environment: 5 – 55 °C
  • IndicationRange: 99999.999 m3
  • Minimum Scale: Interval 0.02 L

Nominal diameter (DN) 15 Meter Thread 15 G 3/4”

  • 40mm x 49mm
  • A (Length) 110mm – 115mm – 165mm – 170mm
  • B 157mm
  • C 92mm
  • D 47mm
  • E 1/2"”mm
  • Weight Kg 0.677

Downloads

AquadisPlus Composite EN 06-14.pdf
