Find out moreIskraemeco IE.5

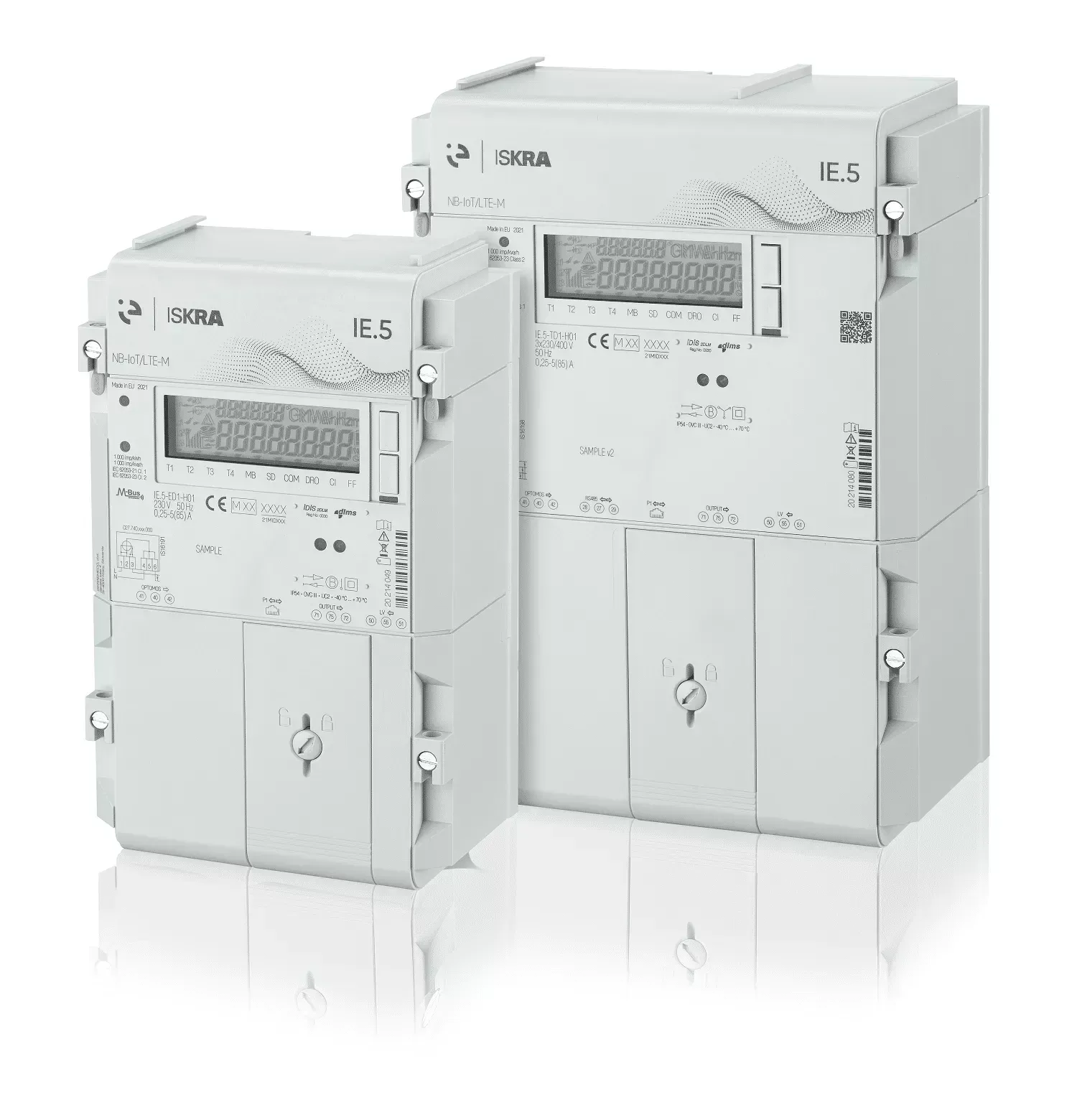

Iskraemeco IE 5 2021 e1658991878383 png
Iskraemeco IE.5
£275.00
£330.00 inc. VAT
Product Description
Product Features:
- Modular hardware & firmware design.
- High integration: Multi-utility, HAN, LAN, IO’s.
- Support for latest communication technology: Mobile networks (NB-IoT/2G/3G/4G/LTE-M/LTE-450 MHz, with or without Last Gasp, eSIM, eUICC, antenna coupler); Ethernet, fibre optic cable, power line communications (G3PLC); Local communication (M-Bus, wireless M-Bus, RS485, P1 interface); Service communication - Optical port. Simultaneous support of several communication protocols is possible.
- Integrated breaker up to 100A, UC3.
- Backup power supply: Replaceable battery with backup time up to 5 years or Supercapacitor with backup time up to 7 days.
- Integrated IO sets: Tailor the meter to your specific needs.
- Customer access to IO’s (2x Relay, P1 port).
- Upgradeable with IoT EDGE module: IE.X meters can be enhanced with an IoT EDGE module, expanding their functionality with additional applications, services, and communication capabilities.
Specification
| IE.5-E | IE.5-T | |||
|---|---|---|---|---|
| Type Overview | ||||
Application
| Low Voltage
| • | • | |
| Connection | 1P2W
| • | • | |
3P4W
| • | |||
| 3P3W | • | |||
| Communication | WAN | Mobile networks: NB-IoT/LTE-M/2G, 2G/4G, with or without Last Gasp, eUICC, antenna coupler; Power line communications (G3PLC); Ethernet, fibre optic cable, RS485. | ||
| Customer Port | DSMR5 P1 in DLMS I1 compliant; active or passive with RJ12 connector type | |||
| Multiutility | M-Bus, wM-Bus
| |||
| Local Communication | Optical port
| |||
| Technical Specifications | ||||
| Nominal Voltage Un | 230V | 3x230/400 V, 3x230 V, 1x230 V
| ||
| Voltage Range | 0.8 – 1.15 Un | |||
| Base current lb | 5 A, 10 A | 5 A, 10 A | ||
| Maximal current Imax | 85 A, 60 A | 85 A, 100 A, 120A | ||
| Accuracy Class | Active Energy | Class 1 (IEC 62053 - 21) or B (EN 50470 - 3, EN 50470 - 1) | ||
| Reactive Energy | Class 1 (IEC 62053 -23) | |||
| Apparent Energy | Calibrated up to 3 % | |||
| Temperature ranges (IEC 62052 - 11) | Operation | -40 °C ... +70 °C | ||
| Storage | -40 °C ... +80 °C | |||
| Ingress protection IEC 60529 | IP 54 | |||
