• External & eSIM options
• eUICC & iUICC capability
• Supports 4G CAT1 bis and 2G
• Smart resilient SIM support
• Remote configuration and status via app or browser
• Direct connection to EDMI Mk7A, 10A, etc meters
• Works in normal meter mode (does not require command line mode)
• Supports Signal Strength display on meter
• Powered from meter interface
• RJ45 with 200mm flying lead for connection

The i-Cell range of cellular communication products are ideal for utility, IoT, retail and many other applications because they are compact and cost effective.

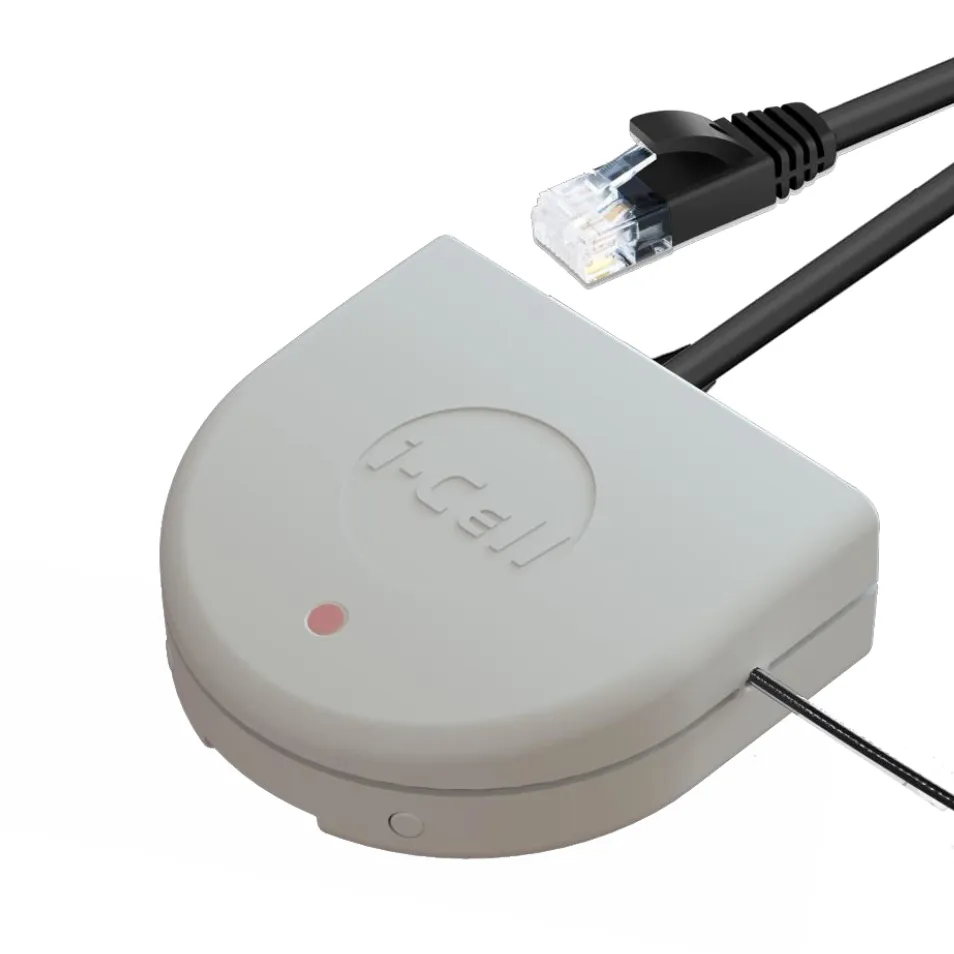

The i-Cell EDMI is a bespoke version for EDMI meters and plugs directly to the meter via a 200mm flying RJ45 cable. It works in EDMI standard operating mode. It does not require “command line” mode. It is fully powered by the meter, and allows modem CSQ (signal strength) to be displayed on the meter.

A suitable antenna can be fitted via the flying lead or mounted remotely via an extension cable if required. It's small size and light weight means it is easily mounted under the meter cover. A mounting plate is available as an accessory if required.

The i-Cell EDMI 4G modem supports worldwide 4G Category 1 bis as an always on network, offering improved performance over LTE M1/NB1 (NBloT) communications for many applications, as well as providing legacy 2G quad band support. lt features a maximum downlink and uplink data rate of approx 10Mbps.

This next generation product supports all the new features specified by 3GPP to boost loT applications, such as Power Saving Mode (PSM) and extended Discontinuous Reception (eDRX), which along with proprietary firmware from Wireless lnnovation allows the modem to wake up periodically to deliver data and then go
