Emlite EMA1.AZ MID Single Phase 100A with Modem and SIM Card (EMGSM1)

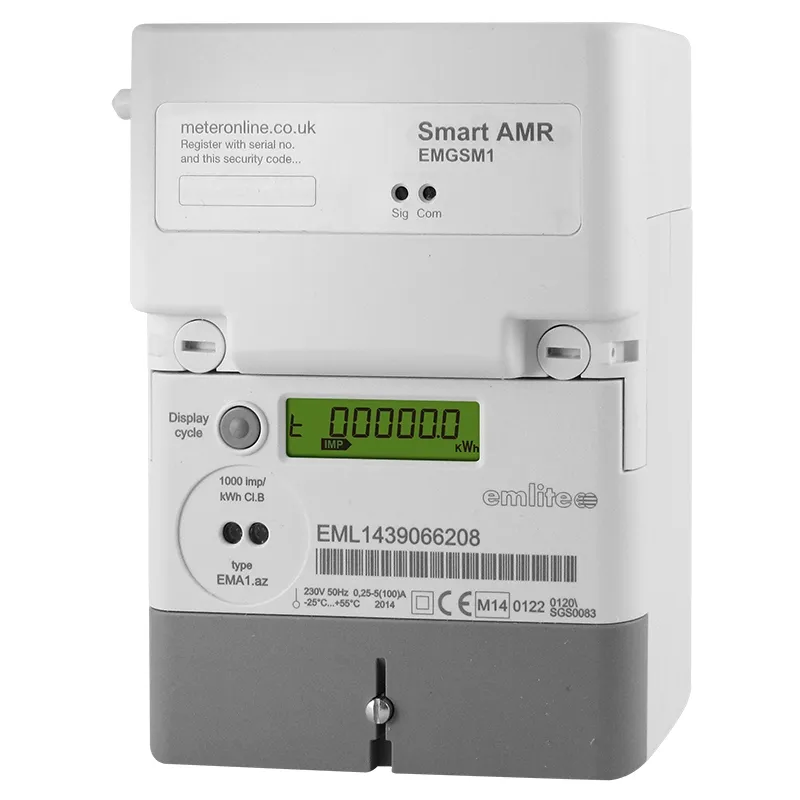

Emlite EMGSM1 800x800

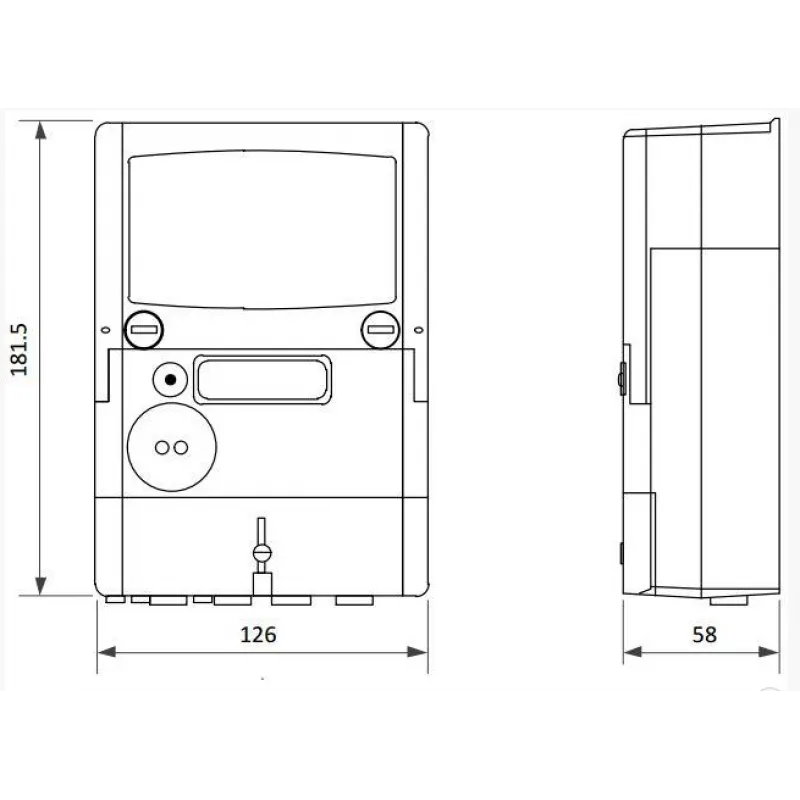

Emlite EMGSM1 Dimensions 800x800
Emlite EMA1.AZ MID Single Phase 100A with Modem and SIM Card (EMGSM1)
£175.00
£210.00 inc. VAT
Product Description
Emlite's EMGSM1 Single Phase MID (2004/22/EC) Smart Meter collects micro-generation metering data. The unit can remotely collect meter readings and specializes in generation metering of renewable energy installations.
Specification
| Nominal Voltage | 220 - 240V, 276 max |
|---|---|
| Voltage Withstand | 415V continuously |
| Nominal Frequency | 50Hz, variation ± 5% |
| Basic Current (Iref) | 5, 10, 15 and 20A |
| Maximum (Imax) | 100A |
| Accuracy - Active Energy | Class B 1%, to EN50470 1-3 |
| Accuracy - Reactive Energy | Class 2, to IEC 62053 –23 |
| Temperature Range | -25°C to +55°C |
| Terminal Arrangement | BS 7856 |
| Main Terminal Size | 8.2mm diameter |
| Terminal Construction | Solid brass |
| Dimensions (W x H x D) | 126 x 182 x 68 |
Downloads
Ask an expert about the
Emlite EMA1.AZ MID Single Phase 100A with Modem and SIM Card (EMGSM1)
Ask a question
