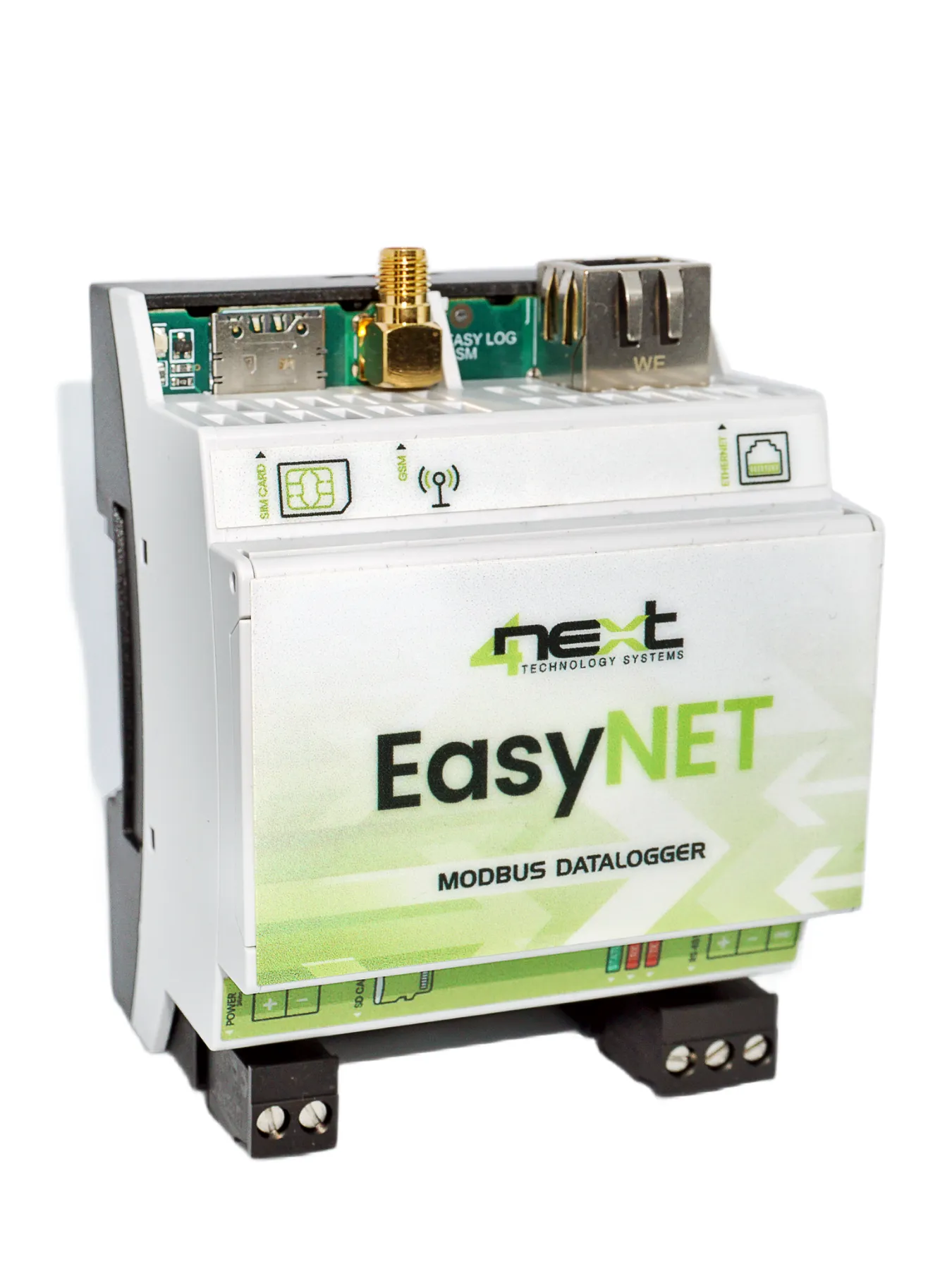

EasyNET 2G – 4G NB-IoT Datalogger
£450.00
£540.00 inc. VAT
Product Description
EasyNET is a datalogger with EasyLog software functions that allows for interfacing with all ModBus RTU and TCP devices in a simple way without knowing how to program.
EasyNET can send data independently using its integrated GSM modem (2G-4G), or via Ethernet connection. The Data can be sent to users (via e-Mail and FTP) or to remote servers for management via the WEB portal.
The WEB configuration interface of this device allows you to have a quick access to all system parameters, to ModBus registers and to variables to be stored.
Specification
| Measured Quantity | temperature, pressure, flow, level, power, energy |
|---|---|
| Ports | RS485 1200-115200bps, 10-100Mb/s Ethernet port |

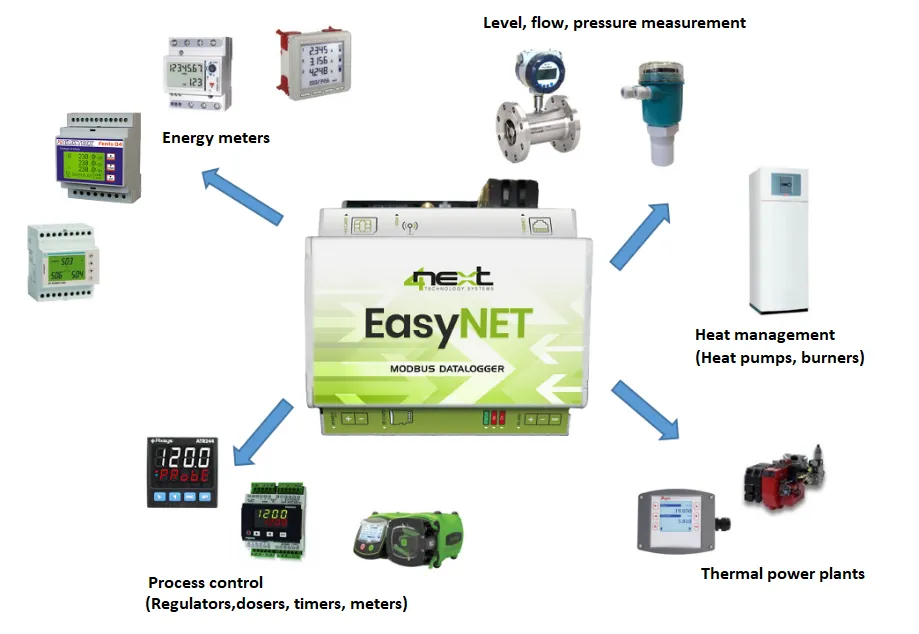

| Applications | Metering (Energy, Water, Gas), Water Treatment, Renewables, Industrial Control, Process Control, Building Automation, Industrial Automation, Measurements in Thermal Power Plants, Agri-food Monitoring |
| Display | without display |
| Characteristics | DIN-Rail (4 modules) |
| Dimensions (W x H x D) | 90 x 70 x 60mm |
| Power Supply | 10-40VDC |
| Average Absorption | <: 1,5W |
| Case | Plastic IP21 for DIN Rail |
| Operating Temperature | -20°C ÷ 60°C |
| Relative Humidity | from 0 to 80% without condensation |
| Certification | CE certification (Standard EN 61000-6-2, EN 61000-6-4) |
| Modems | LTE Cat M1, Fallback GSM/GPRS, Integrated SIM card module |
Downloads
