Eastron SDM120CT Modbus 100MA Kit c/w CT
£60.00
£72.00 inc. VAT
Product Description
Product Features:
- Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
- LCD with backlit
- 2 Pulse Output +Modbus
- Bi-directional Measurement
- CT included
- 1 Module 18mm Width
- 1P2W

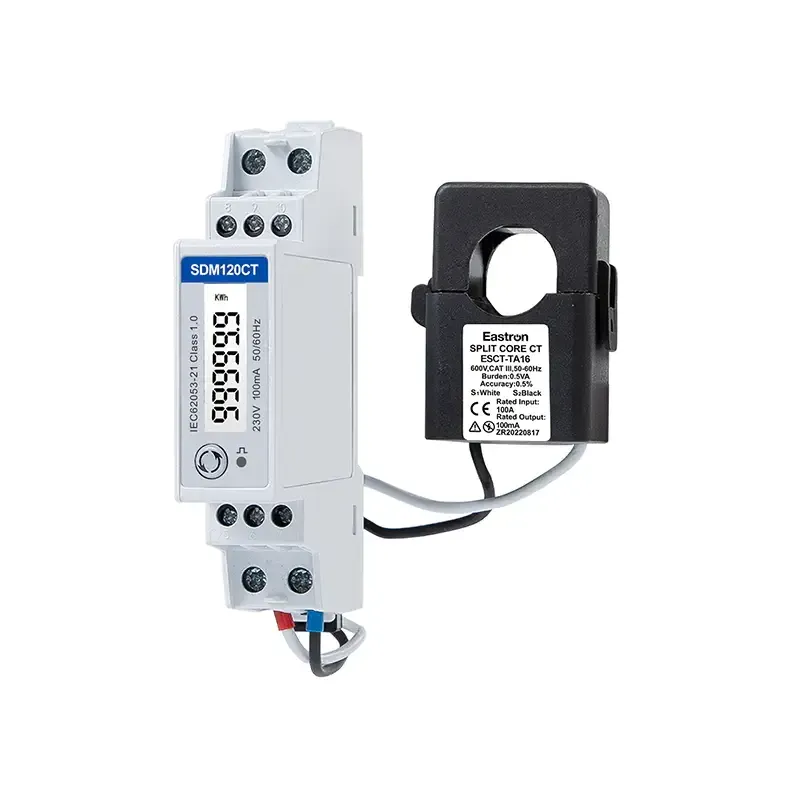

Eastron kit including: 1 x SDM120CT-MODBUS-100MA & 1 x ESCT-TA16-100A/100MA
The SDM120CT-MODBUS-100MA is a single-phase DIN rail energy meter designed for solar PV and zero-export applications. It uses 100mA input and provides accurate monitoring of electrical parameters including energy consumption, voltage, current, power, power factor, frequency, and reactive energy.
The meter features an RS485 communication port for remote monitoring and configuration, along with two pulse outputs for integration with external systems. It is ideal for use in single-phase solar PV installations.
Specification
| Electrical Characteristics | |
|---|---|
| Type of Measurement | RMS on single phase AC system (1P+N) |
| Power | 1% of range maximum |
| Active Energy | IEC 62053-21 Class 1.0/ EN50470-1/3 Class B |
| Reactive Energy | IEC62053-23 Class 2, IEC 61557-12 Class 2 |
| Frequency | 0.2% of mid-frequency |
| Current | 0.5% of range maximum |
| Voltage | 0.5% of range maximum |
| Power Factor | 1% of unity (0.01) |
| Input & Output | |
|---|---|
| CT Primary | RMS on single phase AC system (1P+N) |
| CT Secondary | 1% of range maximum |
| Min Current | Class 1.0 IEC 62053-21 / Class B EN50470-3:2022 |
| Starting Current | Class 2 IEC62053-23, Class 2 IEC 61557-12 |
| Rated Voltage (Un) | 0.2% of mid-frequency |
| Operational Voltage | 0.5% of range maximum |
| Output | 2 Pulse Output + RS485 Modbus |
| Modbus Communcations | |
|---|---|
| Interface Standard and Protocol | RS485 and MODBUS RTU |
| Communication Address | 1-247 |
| Transmission Distance | 1000m Maximum |
| Baud Rate | 1200bps~9600bps |
| Parity | None (default), Odd, Even |
| Stop Bits | 1 or 2 |
| Response Time | <100 mS |
