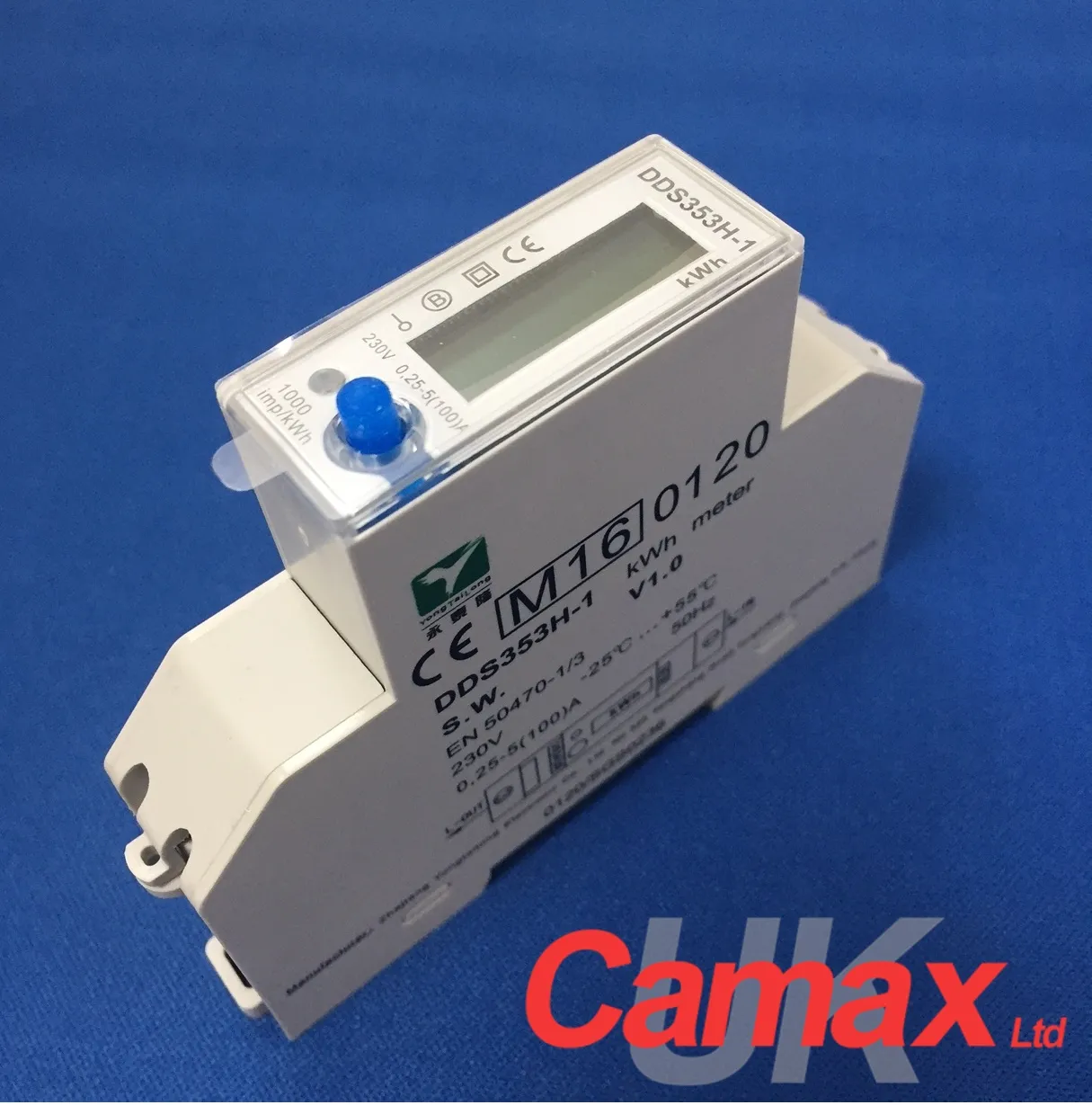

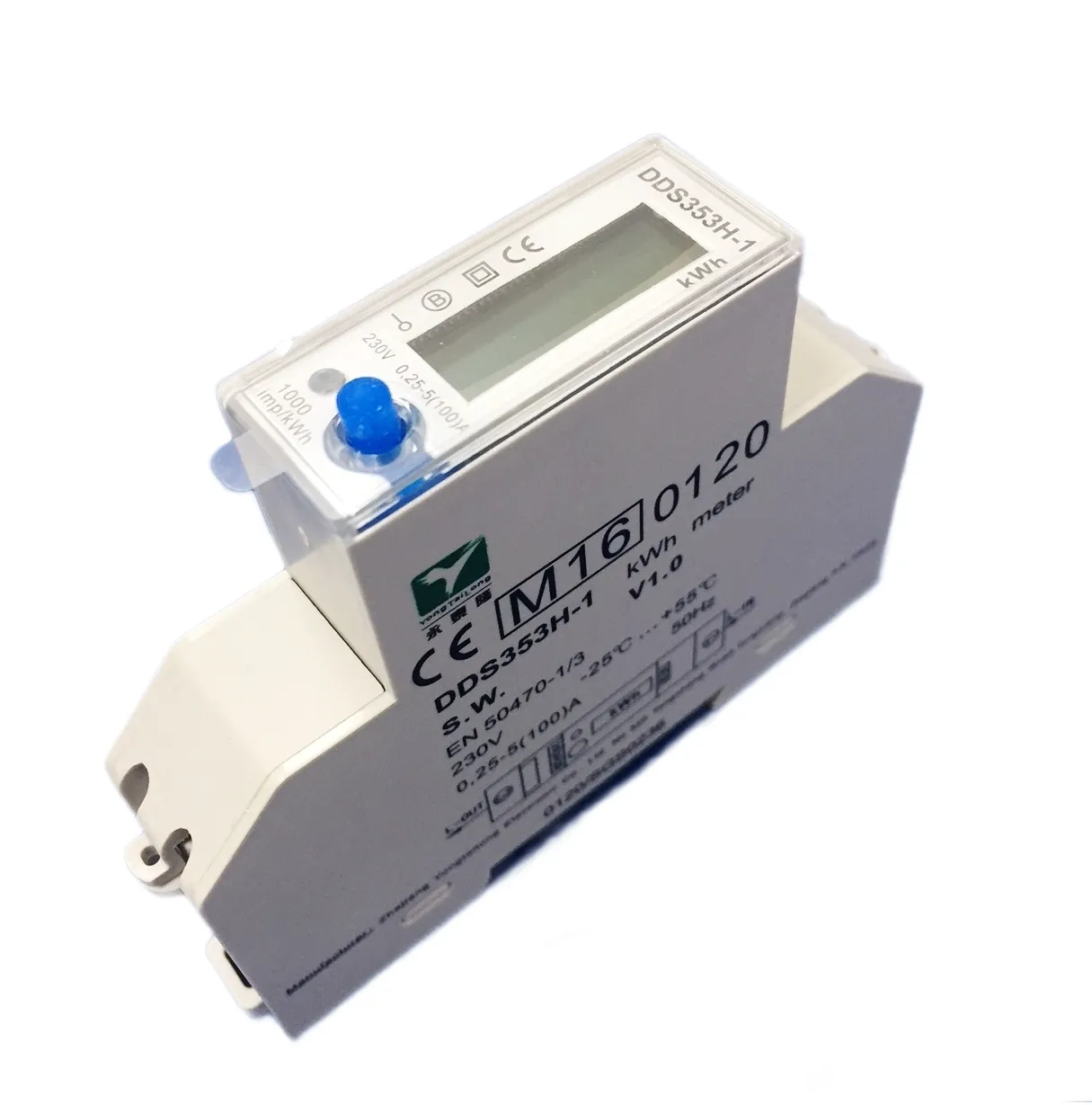

DDS353H-1 MID Certified 100A kWh Meter with Pulse Output
DDS353 H final
DDS353H-1 MID Certified 100A kWh Meter with Pulse Output
£34.00
£40.80 inc. VAT
Product Description
DDS353H-1 is a 100A Kwh Meter with 1 built-in Pulse output. It is an ideal choice for cost-effective sub-billing with MID Certification, easy housing (1-DIN) and on-screen kWh display (LCD).
Specification
| Housing | 1-DIN Module |
|---|---|
| Voltage | 230V ± 20% |
| Current | (5) 100A |
| Accuracy | Class B |
| Standard | EN50470-1 / EN50470-3 |
| Frequency | 50Hz ±10% |
| Display | LCD 5+2= 99999.99kW |
| Power Consumption | ≤8VA ≤0.4W |
| Temperature Range | -25⁰C……+55⁰C |
| Pulse Width | 80mS |
| Max Terminal Wire | 12mm² |
Ask an expert about the
DDS353H-1 Meter
