Crompton Instruments DL3N1-45 Dual Load Current Transformers
DL3 N1

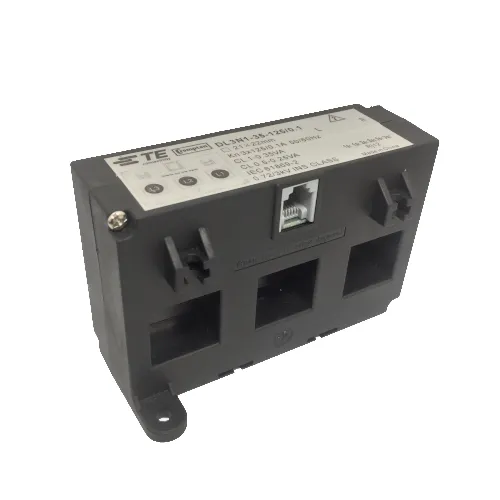

Crompton Instruments DL3N1-45 Dual Load Current Transformers
£34.00
£40.80 inc. VAT
Product Description
Crompton Instruments' 3-in-1 current transformer range are for use with the Integra DL1 digital metering system. Three traditional current transformers are contained in one moulding case with a RJ12 connection for simple and easy error free installation.
CT mounting options of busbar, DIN-rail and metal feet are supplied as standard.
Product Features:
- Busbar DIN-rail and metal feet (mounting hardware supplied)
- RJ12 socket for fast connection eliminate wiring errors
- Cable included (length 1.5 m)
- Low 60A ratio for more energy efficient loads
Primary Current | VA Rating | Accuracy Class |
| 250/0.1 | 0.25 | 1 |
| 400/0.1 | 0.25 | 0.5 |
| 600/0.1 | 0.25 | 0.5 |
Specification
| System Voltage | 720V maximum |
|---|---|
| Test Voltage | 3kV for 1 minute |
| System Frequency | 50Hz or 60Hz |
| Primary Ratings | 100mA AC rms. per CT |
| Overload Withstand | 1.2 x rated current continuously |
| Operating Temperature | -20°C to +85°C |
| Enclosure | Flame retardant grade classified UL94V-O |
| Aperture - Hole Centres | 35mm |
| Aperture | 3 @ 22 x 22mm |
| Case | 142 x 40 x 86mm |
| Accuracy | IEC/EN 60044-1 Class 1 |
Downloads
Ask an expert about the
DL3N1-45 Current Transformer
