Carlo Gavazzi ROG4X Rogowski Coil Series (250-900mm)
£337.10
£404.52 inc. VAT
Product Description

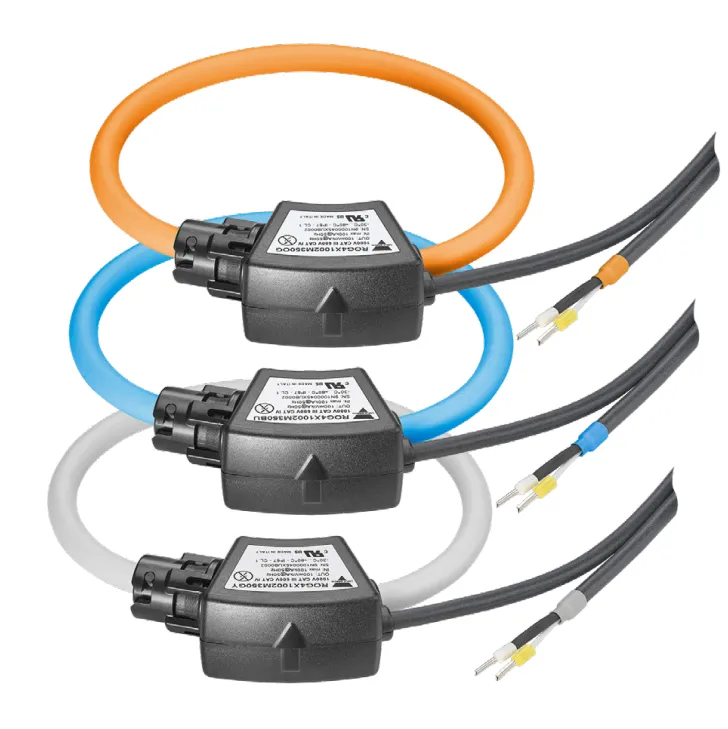

Carlo Gavazzi's ROG4X is a Rogowski coil designed for use with EM510 and EM210 meters to measure current in single-phase, two-phase and three-phase systems.
Compact, flexible and lightweight, it is suited to all applications and can be installed in all types of switchboards.
Supplied in a kit made up of three different coloured pieces to make phase identification easy, it comes with coils with three different diameters and lengths and measures a wide current interval from 20 to 1000 A with EM50 and up to 4000 A with EM210.
Specification
| Material | Thermoplastic rubber, self-extinguishing degree V-0 (UL 94) |
|---|---|
| Protection degree | IP67 |
| Connection cable to analyser | Type: AWM STYLE 21223 Wires: section 0.34 mm² (3x22 AWG) Length: 2 m |
| Overvoltage category | Cat. III 1000 V Cat. IV 600 V |
| Pollution degree | 2 |
| Insulation | Halogen free polyethylene for output cable |
| Mounting | Cable Busbar |
