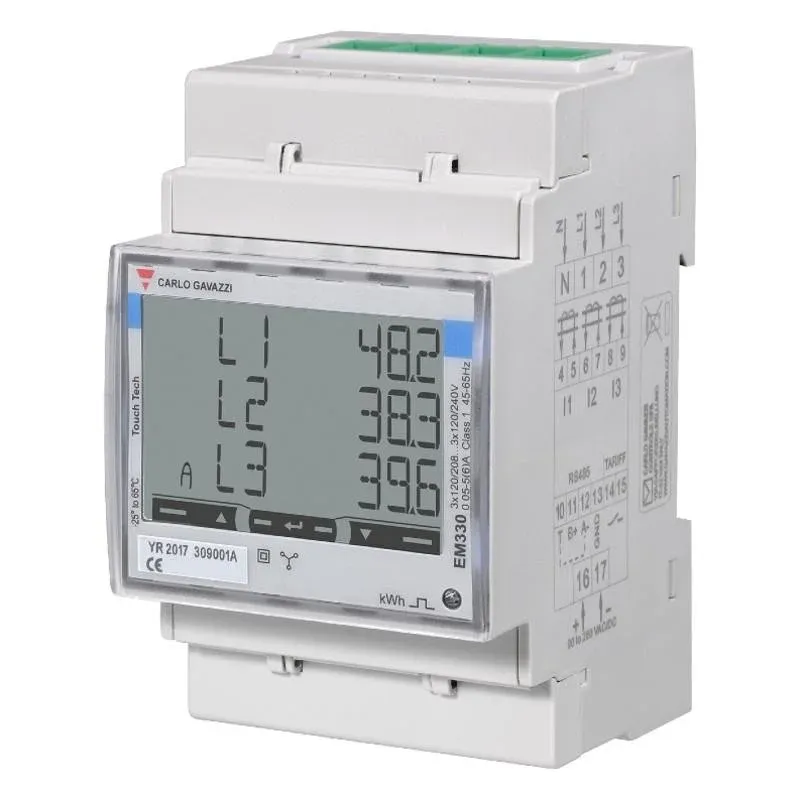

Carlo Gavazzi EM340 MID Energy Meter Series
£109.57
£131.48 inc. VAT
£141.37
£169.64 inc. VAT
Carlo Gavazzi's EM300 Range offers a cost-effective, compact and MID certified 3-phase metering solution. The meters are ideal for remote monitoring with 1 digital input,1 Pulse output and with the option of either M-Bus or Modbus RTU to communicate with PLCs.
Current type | 3-phase loads, CT connection |
Current rate | 5(6)A |
Nominal voltage | AV5: 400 to 480 VLL ac |
Max CTxVT | AV5: 1000 |
Active energy | Class 1 according to EN62053-21 and Class B according to EN50470-3 |
Reactive energy | Class 2 according to EN62053-23 |
Sampling rate | 4096 samples/s @ 50Hz |
Operating temperature | 25 to +65 °C (-13 to 149F), indoor, (R.H. from 0 to 90% non-condensing @ 40°C) |
Storage temperature | 30°C to +80°C (-22 to 176° F) (R.H. < 90% non condensing @ 40°C) |
Overvoltage category | Cat. III |
Standard | Safety: EN62052-11 (X option models), EN50470-1 (PF option models) Metrology: EN62053-21 (X option models), EN50470-3 (PF option models) IEC/EN61557-12 (active power and active energy, MID models only) |
Approvals | CE, MID (PF option only), cULus (UL61010-1) |
Connections | Cable cross-section area: Voltage inputs: max. 4 mm2 , min. 1 mm2 with/ without metallic cable ferrule; Max. screw tightening torque: 0.6 Nm Other Terminals: 1.5 mm², Min./Max. screws tightening torque: 0.4 Nm |
Dimensions (W x H x D) | 54 x 90 x 63 mm |
Material | Polycarbonate, selfextinguishing |
Sealing covers | Included |
Mounting | DIN-rail |
Protection degree | Front: IP51 Screw terminals (cable inputs): IP20 |
Weight | Approx. 240 g (packing included) |
Auxiliary power supply | H: 100 to 240 V ac/dc |
Power consumption | ≤ 1W, ≤ 8VA |
