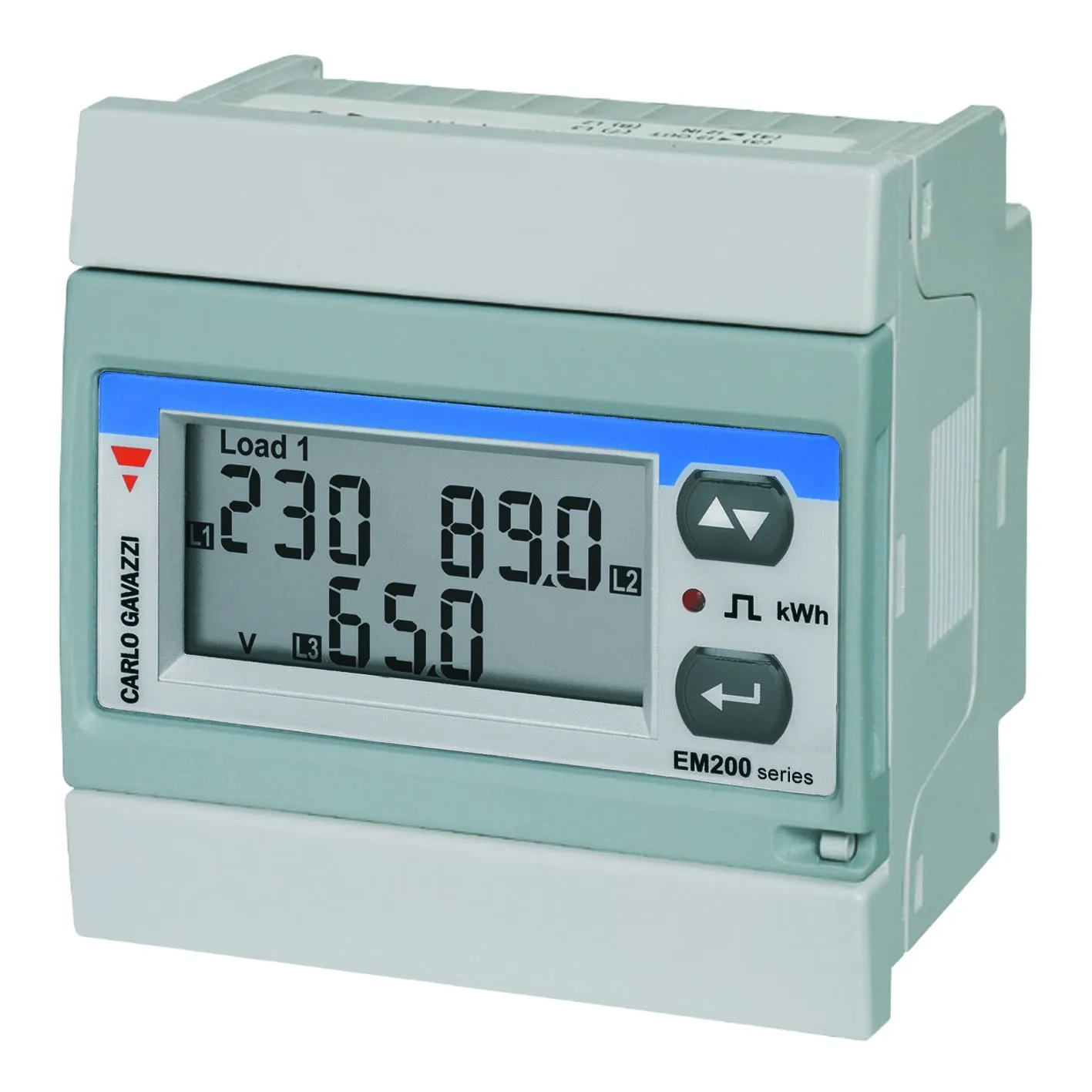

Carlo Gavazzi EM210-72P Panel Mount MID Certified Meter with Pulse Output (EM21072DAV53XOXPFB/P)

EM210 pan 2

EM210 pan 2

Carlo Gavazzi EM210-72P Panel Mount MID Certified Meter with Pulse Output (EM21072DAV53XOXPFB/P)

£195.66

£234.79 inc. VAT

Product Description

This general purpose three-phase energy meter is suitable for active and reactive energy metering for cost allocation, but also for main electrical parameter measurement and retransmission (transducer function). Current measurements are carried out by means of external current transformers. Voltage measurements carried out either by means of direct connection (up to 400 V LL) or by means of potential transformers.

Specification

  • MID approved
  • 72x72x65mm housing for panel mount fitting
  • Detachable LCD display
  • Instantaneous variables readout: 3 x 3 digits
  • Energy metering readout: 7 digits
  • Accuracy of ±0.5% RDG (V, A)
  • Class B according to EN50470-3 (class 1 of EN62053-21), Class 2 (kvarh) according to EN62053-23
  • For 1-phase (2 wire), 2-phase (3 wire), 3-phase (3, 4 wire, balanced, unbalanced) systems for up to 400 V LL
  • CT connection (5A), TRMS measurement method
  • System variables: W, var, PF, Hz, kWh, kvarh (other variables available via RS-485)
  • Single-phase variables: A, VLL, VLN, PF (other variables available via RS-485)
  • 1 pulse (opto-MOSFET) output (standard)
  • RS485 port (optional)
  • Self-powered supply voltage from 3-phase mains
  • IP50 protection degree (from the front); and cUL listed, CE approved
