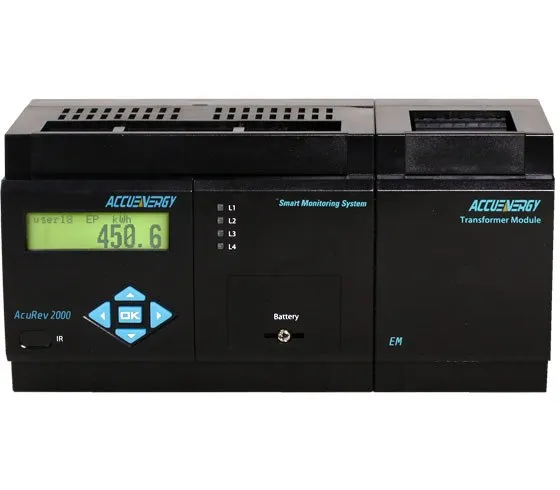

Accuenergy AcuRev2010 1EM & 2EM Multi-Circuit Modular Power Energy Meter

Accuenergy AcuRev2010 1EM & 2EM Multi-Circuit Modular Power Energy Meter

£755.00

£906.00 inc. VAT

Product Description

The AcuRev 2000 Series is the next generation multifunction energy meter developed and manufactured by Accuenergy. It performs real-time metering, measures energy consumption and monitors power quality for up to 18 single phase circuits (or 6 three phase circuits) in one unit.

AcuRev 2000 series meter is ideal for multi-tenants submetering applications such as in commercial facilities, residential apartments and industrial environments. Communication options include infrared, RS485 serial communication and Ethernet.

There are also multiple I/O options which can support pulse counting from water and gas meters as well as provide a kWh pulse output.

Due to its communication capability, compact size and ease of use, the AuRev 2000 series is a simple, intelligent and cost effective solution for any energy management system.

Product Features:
  • Comply to IEC 62053-21 Measurement Standard
  • Support up to 18 Individual Channels for Energy Measurement
  • Multifunction Power Metering, Monitoring and System Analysis
  • Data Logging and Load Status Recording
  • Multiple Communication Ports
  • Modular Design
  • Extented Power Supply (100 - 415 Vac)
  • Data (Pulse) Collection from Water and Gas Meter

Specification

Measure

Parameter

Accuracy ± (%rdg)

Range

kWh

1%0~999999.9kwh

V

0.5%10~400V

I

0.5%5mA~10000A

P

1%4000.0kW

Q

1%4000.0kvar

S

1%4000.0kVA

PF

1%-1.000~1.000

Freq

0.2%45~65Hz

Activepower Demand

1%4000.0kW

Current Demand

0.5%5mA~10000A

Harmonic

2%0~100%

Unbalance

1%0~100%

Meter Running Time

-0~999999.9 hours

Input

Voltage Input

Nominal Full Scale

400Vac L-N,690Vac L-L

Withstand

1500Vac continuous, 2500Vac, 50/60Hz for 1
minute

Input Impedance

2Mohm per phase

Metering Frequency

45Hz~65Hz

PT Burden

<0.2VA

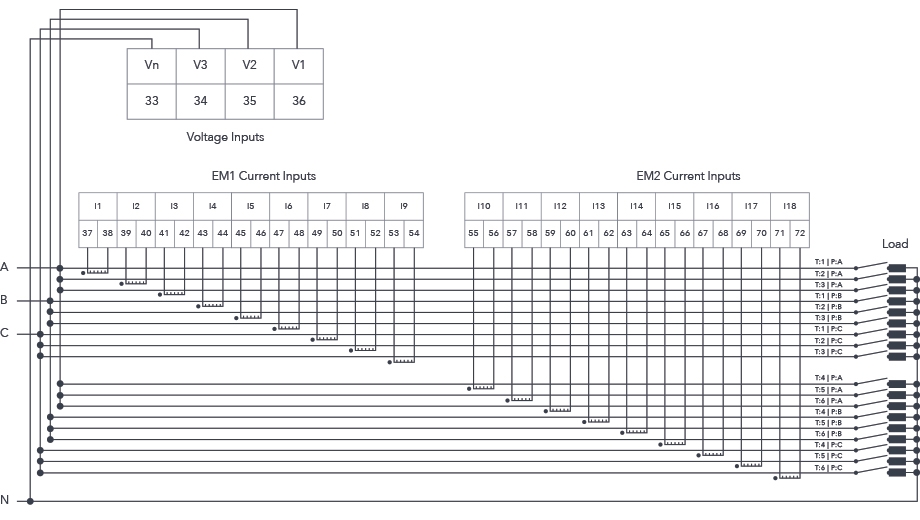

Current Input (wired directly or through CT)

Through CT

See ordering information

Directly

Each loop current limit: 20A-80A

Power Supply

Operating Range

100-415Vac, 50-60Hz; 100-300Vdc

Burden

10VA

IO

Digital Input (DI)

Input Style

Dry node

Input Current (MAX)

2mA

Input Voltage Range

15-30V

Start Voltage

12V

Stop Voltage

10V

Pulse Frequency (MAX)

100Hz, 50% Duty cycle

SOE Resolution

2ms

Auxiliary Power of DI

Output Voltage

24VDC

Rated Power

1W

Relay Output (RO)

Switching Voltage (MAX)

250Vac, 30Vdc

Load Current

3A

Set Time

10ms (MAX)

Contact Resistance

100mΩ (MAX)

Isolation Voltage

2500V

Mechanical Life

1.5x10

Operating Environment

Operation temperature

-25°C~ 70°C

Storage temperature

-40°C~ 85°C

Humidity

5%~95% non-condensing

Altitude

3000m

Measurement Standard

IEC62053-21

Static meters for active energy (classes 1)

Environment Standard

IEC 60068-2

Safety Standard

IEC 61010-1

Dimensions

Base Unit

140 L ×105.4 W × 77.7mm H

EM Module

67 L × 105.4 W × 77.7mm H

DM Module

153 L × 105.4 W × 77.7mm H

External Display Module

72 L × 72 W × 26.5mm H
