ABB B24 112-100 Three Phase CT Connected MID Meter with Pulse and Modbus RS485 Output (2CMA100178R1000)
In stock
£174.00
£208.80 inc. VAT
ABB B24 113-100 Three Phase CT Connected MID Meter with Pulse and M-Bus Output (2CMA100179R1000)
B23 24

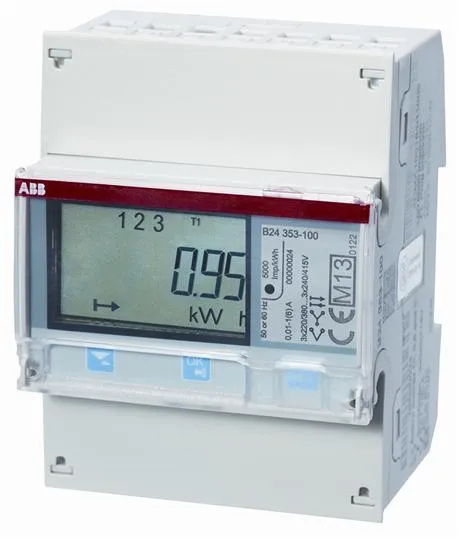

Abb b24 pic 2
ABB B24 113-100 Three Phase CT Connected MID Meter with Pulse and M-Bus Output (2CMA100179R1000)
£233.16
£279.79 inc. VAT
Product Description
ABB B24 113-100 Three Phase 5A CT Connected meter has Pulse and M-bus output, MID certification, and is mounted on a DIN rail. Due to its compact size and ability to give reliable energy measurements, this meter is suitable for installation in distribution boards and small enclosures such as consumer units.
The meter reads active energy with accuracy class B (CL 1) and is labelled 'Steel' in ABB's descriptions.
Specification
Voltage/Current Input
| Nominal voltage | 3x230/400 V AC |
| Voltage range | 3x220-240 VAC (-20% - +15%) |
| Power dissipation voltage circuits | 1.6 VA (0.7 W) total |
| Power dissipation current circuits | 0.007 VA (0.007 W) per phase at 230 V AC and Ib |
| Base current Ib | - |
| Rated current In | 1 A |
| Reference current Iref | - |
| Transitional current Itr | 0.05 A |
| Maximum current Imax | 6 A |
| Minimum current Imin | 0.02 A |
| Starting current Ist | < 1mA |
| Terminal wire area | 0.5 - 10 mm² |
| Recommended tightening torque | 1.5 Nm |
General Data
| Frequency | 50 or 60 Hz ± 5% |
| Accuracy Class | B (CL 1) or C (CL 0.5 S) and Reactive CL 2 |
| Active energy | 0.5%, 1% |
| Display of energy | 7 digit LCD |
Environmental
| Operating temperature | 40°C - +70°C |
| Storage temperature | 40°C - +85°C |
| Humidity | 75% yearly average, 95% on 30 days/year |
| Resistance to fire and heat | Terminal 960 °C, cover 650°C (IEC 60695-2-1) |
| Resistance to water and dust | IP20 on terminal block without protective enclosure and IP51 in a protective enclosure, according to IEC 60529 |
| Mechanical environment | Class M2 in accordance with the Measuring Instrument Directive (MID). (2004/22/EC) |
| Electromagnetic environment | Class E2 in accordance with the Measuring Instrument Directive (MID), (2004/22/EC) |
Outputs
| Current | 2 - 100 mA |
| Voltage | 5 - 240 V AC/DC For meters with only 1 output - 5- 40 VDC |
| Pulse output frequency | Programmable: 1 - 999999 imp/kWh |
| Pulse length | Programmable: 10 - 990 ms |
| Terminal wire area | 0.5 - 1 mm² |
| Recommended tightening torque | 0.25 Nm |
Inputs
| Voltage | 0 - 240 V AC/DC |
| ON | 0 - 12 V AC/DC |
| OFF | 57 240 V AC/24 - 240 V DC |
| Min. pulse length | 30 ms |
| Terminal wire area | 0.5mm - 1mm² |
| Recommended tightening torque | 0.25 Nm |
EMC Compatibility
| Standards | IEC 62052-11, IEC 62053-21 class 1 & 2, IEC 62053-22 CL 0.5 S, IEC 62053-23 class 2, IEC 62054-21, GB/T 17215.211-2006, GB/T 17215.321-2008 class 1 & 2, GB/T 17215.322-2008 class 0.5 S, GB 4208-2008, EN 50470-1, EN 50470-3 category A, B & C. |
Mechanical
| Material | Polycarbonate in transparent front glass. Glass reinforced in bottom case and upper case. Polycarbonate in terminal cover. |

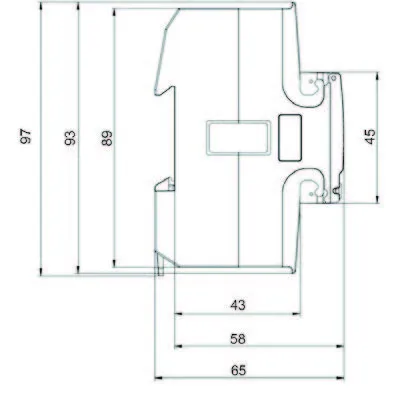

Dimensions
| Width | 70 mm |
| Height | 97 mm |
| Depth | 65 mm |
| DIN Modules | 4 |
Downloads
Ask an expert about the
ABB B24 113-100 Three Phase CT Connected MID Meter with Pulse and M-Bus Output (2CMA100179R1000)
Ask a question
