Magnelab RCS-1800 3 Phase Rope CT with 0.333V output

This product requires an external DC Power Supply (9 - 36V DC)

£290.00

£348.00 inc VAT

Overview

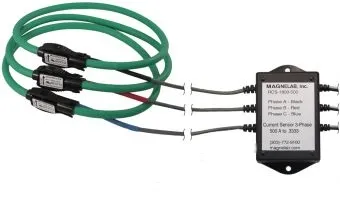

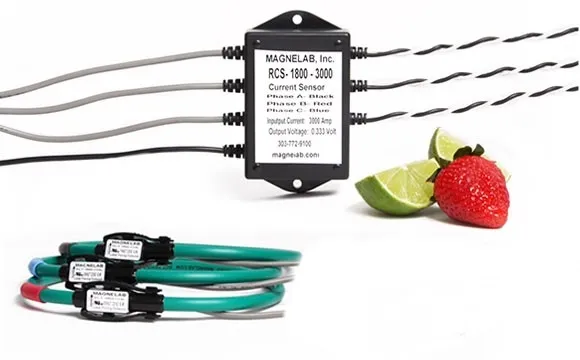

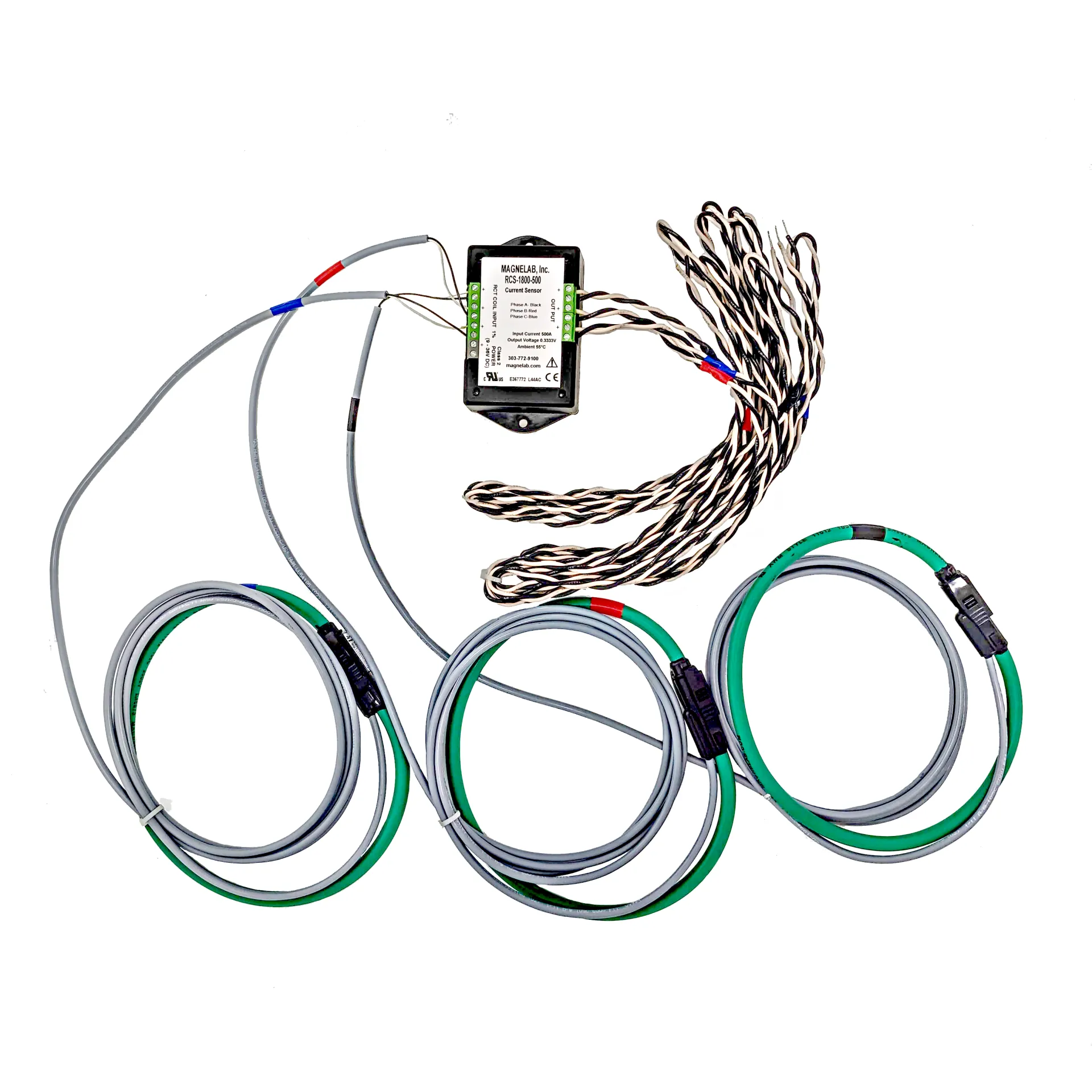

The Magnelab RCS-1800 Series Three-Phase flexible RopeCT® measures AC current up to 5,000 Amps (Depending on the model).

The three coils open at the connector junction and can be installed on an existing cable or bus-bar in a matter of seconds. Custom length, output, and other parameters are available.

  • Accuracy: 1%
  • Output: 0.333V
  • Self-Powered (Requires 9 -36V DC)

Specification

  • Input Range: 250 Amp to 5,000 Amp (Depending on model)
  • Output: 0.333V at rated current
  • Accuracy ±1%
  • Rated accuracy at 10% to 300% rated current
  • Phase angle < 0.5 degrees measured at 50% rated current
  • Power supply provided ( 9-36V DC with-stand)
  • Three 18" [0.46 m] coils (12", 24", 36", or 48" also available)
  • 4 ft. insulated leads (from Rope CT® to integrator)
  • 8 ft. output leads twisted pair (600V)

Downloads

RCS-1800_RopeCT_3_phase.pdf RCT-1800 Installation Instructions (Color).pdf
