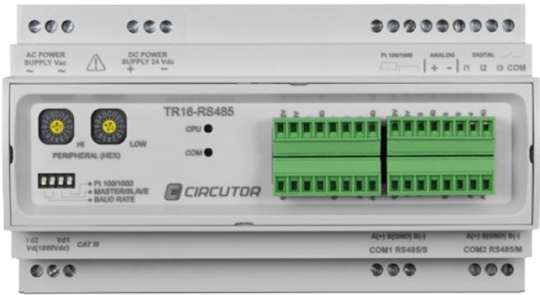

Circutor TR16-RS-485 Measurement Device for up to 16 Strings (E80003)

Manufacturer Part No: TR16-RS485

Circutor TR16-RS-485 Measurement Device for up to 16 Strings (E80003)

Manufacturer Part No: TR16-RS485

£400.00

£480.00 inc. VAT

Product Description

Circutor's TR16-RS485 Multi-channel DC voltage and current analyser has been specifically designed for controlling strings in photovoltaic plants. The device recognises the level of current generated in the different groups in real time, and measures the current flowing through the external sensors. It is also well suited for solar applications.

Product Features:
  • Sixteen 25/100/200 A direct current inputs (Hall effect system)
  • Connection of up to 4 M/TR transformer modules
  • 3 voltage-free digital inputs (alarms)
  • One 1000 Vd.c. input
  • 1 input for the temperature probe
  • Pt100 or Pt1000 (selectable), One 0-20 mA analogue input
  • 230 Va.c. or 24 Vd.c. power supply voltage

Specification

Power

Power supply

Alternating C

Direct C

Nominal voltage

230 Vac24 Vdc =

Power supply tolerance

± 30 %± 10 %

Frequency

50 Hz-

Consumption of the equipment without transformers

8 mA / 1.84 V•A70 mA

Consumption of the equipment with 8 sensors
(no load)

32 mA / 7.36 V•A270 mA

Consumption of the equipment with 8 sensors
(with current)

32 mA / 7.36 V•A270 mA

Operating temperature

-10…+65ºC

Relative humidity

5... 95% RH (non-condensing)

Maximum operating altitude

2,000 metres

Protection

IP 20

Safety

Category III – 300 Vac (EN61010)
Double-insulated electric shock protection class II
