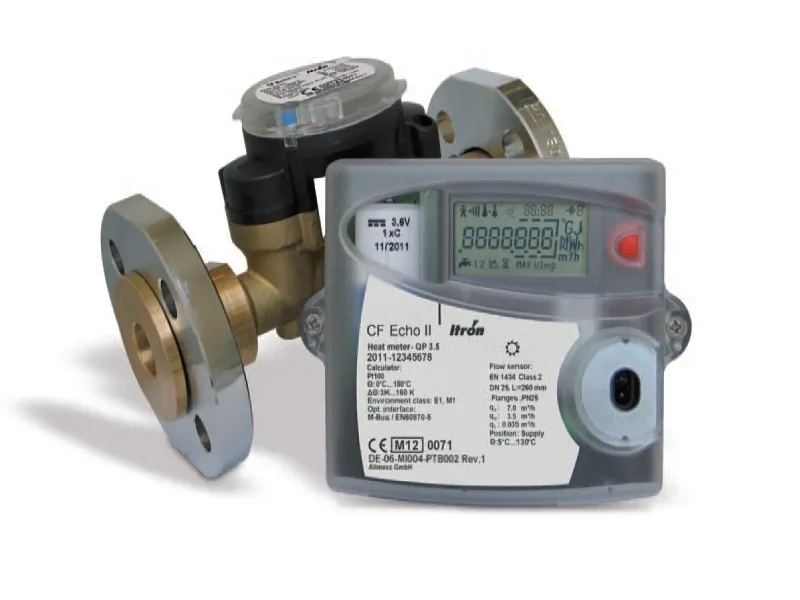

50mm Itron CF Echo II Ultrasonic Heat Meter

£500.00

£600.00 inc VAT

Overview

This model will fit 50mm pipes

Product includes: Ultrasonic heat meter, temperature sensors (2-wire), in-line coupling/unions (2") and Pulse/Mbus REP

The CF ECHO II is the compact meter of Itron’s CF Heat and Cooling meter family equipped with ultrasonic flow meter. Electronic data processing gives high precision throughout the entire measurement curve, producing a dynamic range exceeding class C.

Flows can be measured from qp 0.6 to qp 15 m3/h (DN15 to DN50) with reliable and stable accuracy.

Features

  • High metrology
  • Advanced functions
  • Ease of installation
  • Easy reading
  • Pre-equipped for communication

Specification

Standards Compliance

  • MID 2004/22/EC Module B+D
  • Class 2.0 acc. EN 1434
  • Env. Class C acc. EN 1434
  • OIML R75
  • PTB Class C
  • SP Test ≤ -2%
  • PED compliant

Downloads

CF Echo II User Guide 7-14.pdf CF Echo II_Datasheet.pdf
